漩涡气泵的叶轮由数十片叶片组成,它类似庞大的气轮机的叶轮。叶轮叶片中间的空气受到了离心力的作用,向叶轮的边缘运动,在那里空气进入泵体环行空腔,重新从叶片的起点以同样的方式再进行循环。叶轮旋转所产生的循环气流,以极高的能量离开气泵以供使用。风机采用专用电机,结构紧凑,体积小,重量轻,噪音低,送出气源无水无油。
漩涡气泵工作原理:
漩涡气泵的叶轮由数十片叶片组成,它类似庞大的气轮机的叶轮。叶轮叶片中间的空气受到了离心力的作用,向叶轮的边缘运动,在那里空气进入泵体环行空腔,重新从叶片的起点以同样的方式再进行循环。叶轮旋转所产生的循环气流,以极高的能量离开气泵以供使用。风机采用专用电机,结构紧凑,体积小,重量轻,噪音低,送出气源无水无油。

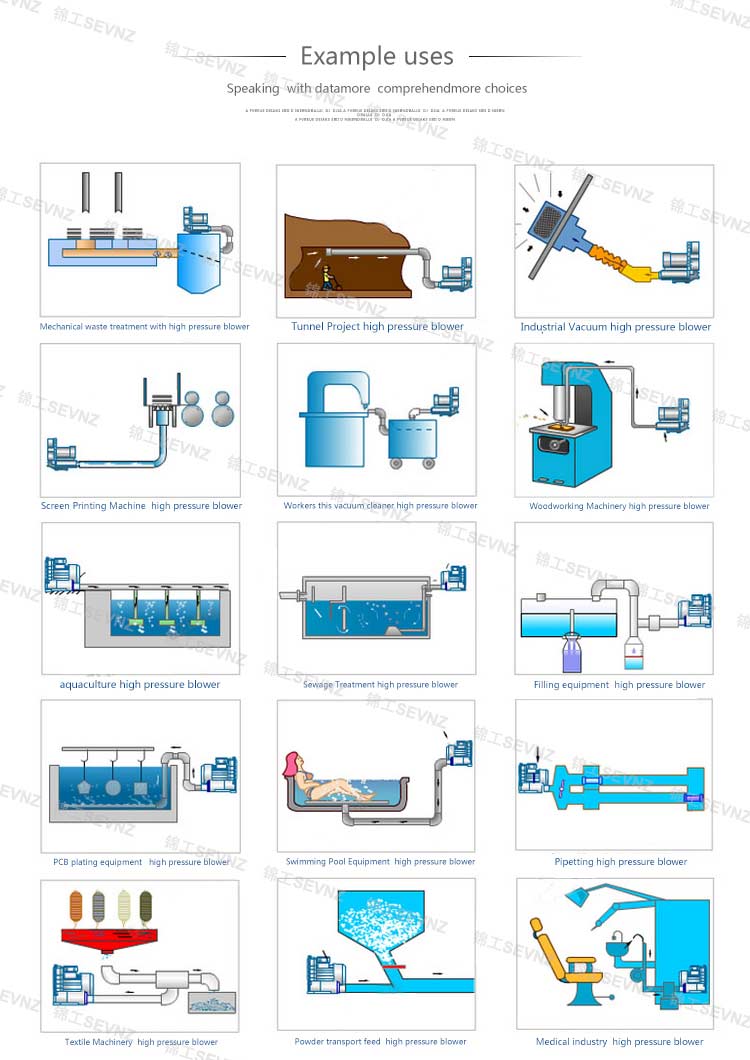

漩涡气泵的用途:
漩涡气泵的安装注意事项:
The impellers in the Regenerative Blowers are mounted directly on the motor shaft for noncontact compression entirely without friction. Maximum operational reliability, even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.
The gas it taken in through the inlet ①. As it enters the side channel ②, the rotating impeller ③. Imparts velocity to the gas in the direction of rotation. Centrifugal force in the imp eller blades accelerates the gas outward and the pressure increase. Every rotation adds kinetic energy. Resulting in the further increase of the pressure along the side channel. The side channel narrow at the rotor, sweeping the gas off the impeller blades and discharging it through the outlet silencer ④ where it exits the side channel blower.
Features of Side Channel Blower (Ring Blower):
1. Beautiful surface;
2. Easy installation;
3. Low noise level;
4. No vibration, and therefore complete dynamic stability;
5. Pulsation-free discharge;
6. Minimal maintenance;
7. Higher pressure ratio;
8. Cooler running bearings;
9. Longer grease life;
10. Simple maintenance;
11. 100%oil-free air;
12. Suitable for environmental protection;
13. Small dimensions;
14. Continuous duty.
